API600 OS&Y Cast Steel Gate Valve
1. Design & Manufacture: ANSI B16.34, API 600, API6D
2. Body Structure: OS&Y, Bolted Bonnet, Solid or Flexible Wedge Design
3. Size Range: 2″ to 36″
4. Pressure Ratings: ANSI Class 150Lbs, 300Lbs, 600Lbs, 900Lbs, 1500Lbs
5. End Connections: Flanged, Butt weld
6. Materials Available in: WCB, LCB, CF8, CF8M, CF8C, CF3, CF3M, WC6, WC9, C5, C12, 4A, 5A or Equivalent
7. Various Trim Materials Are Available To Suit Different Service Conditions
8. Actuator: Manual, Electric Actuator
9. NACE MR 0175 on request
Product Details
API600 OS&Y Cast Steel Gate Valve Introduce
API600 OS&Y Cast Steel Gate Valve is designed and manufactured according to the API 600 standard. It features an outside screw and yoke (OS&Y) design that provides better sealing and easy maintenance. It is widely used in the oil and gas industry, chemical processing plants, power generation facilities, and water treatment plants. QINGDAO FLUIDO, a leading manufacturer of valves, offers API600 OS&Y Cast Steel Gate Valve with exceptional quality and performance.
The API600 OS&Y Cast Steel Gate Valve is available in various sizes, ranging from 2 inches to 48 inches. It is designed to handle high-pressure and high-temperature applications, making it ideal for critical applications. This valve is also available in different pressure classes, including 150, 300, 600, 900, 1500, and 2500.
QINGDAO FLUIDO's API600 OS&Y Cast Steel Gate Valve is designed to meet the most demanding applications. It is equipped with a variety of features that ensure its reliability and durability. Some of these features include:
• Renewable seat rings
• Rising stem and non-rising handwheel
• Bolted bonnet
• Full port design
• Flexible wedge
• Graphite packing
• Flanged, butt-weld, or socket-weld end connections
If you are looking for a reliable and durable valve for your industrial application, QINGDAO FLUIDO's API600 OS&Y Cast Steel Gate Valve is an excellent choice. Contact us today to learn more about our products and services.

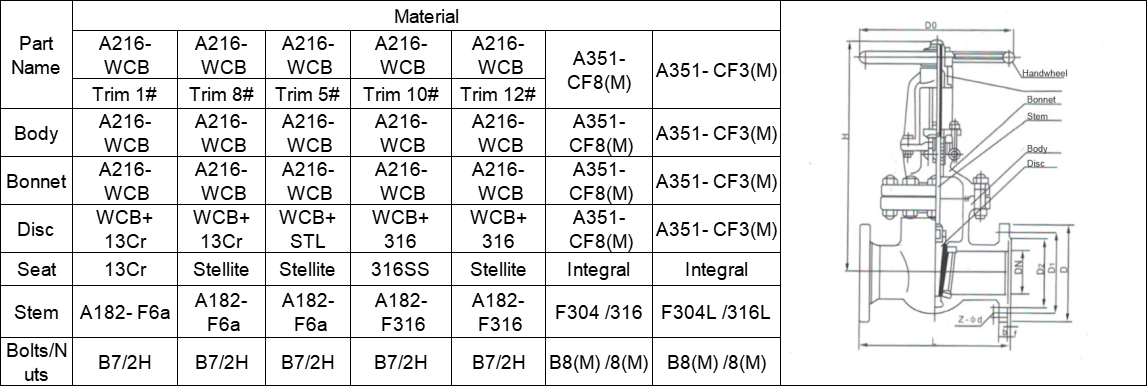

Parts and Materials of API600 OS&Y Cast Steel Gate Valve:
| Name | Design | Face to Face | Pressure Test | Connect Flange |
| Reference standard | API 600 | ASME B16.10 | API 598 | ASME B16.5 |

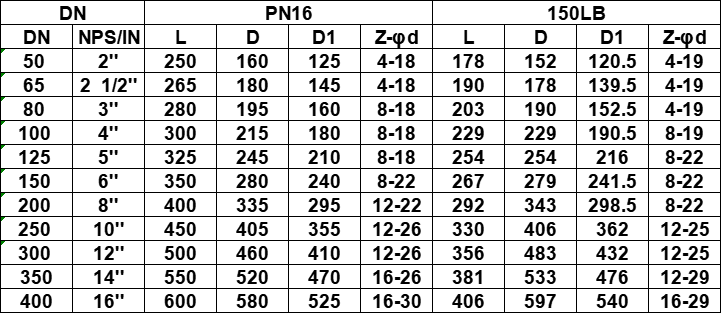

Dimension of API600 OS&Y Cast Steel Gate Valve:
