Cast Iron Diaphragm Valve PN10
Product Description
Product Details
Cast Iron Diaphragm Valve PN10
Flange dimensions conform to EN1092-2, BS4504 PN10
Face to Face dimensions Conform to EN558-1
Testing Conform to API598, DIN3230
Working pressure: DN50-DN125: 1.0MPa
DN150-DN200: 0.6MPa
DN250-DN300: 0.4MPa
Working temp.: NR -20℃, +60℃

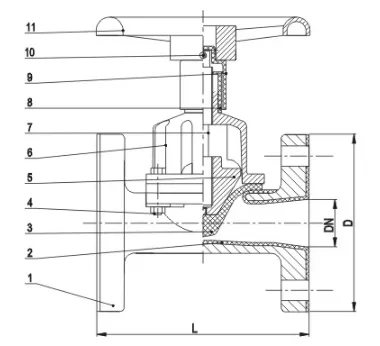

Material List:
| No. | Part Name | Material |
| 1 | Body | GG25 |
| 2 | Linging | NR |
| 3 | Diaphragm | NR |
| 4 | Bolt | Steel |
| 5 | Disc | GG25 |
| 6 | Bonnet | GG25 |
| 7 | Shaft | Steel |
| 8 | Sleeve | ABS |
| 9 | Sleeve | ABS |
| 10 | Pin | Steel |
| 11 | Handle | GGG40 |
Dimensions:
| DN | 50 | 65 | 80 | 100 | 125 | 150 |
| D | 165 | 185 | 200 | 220 | 250 | 283 |
| L | 194 | 216 | 258 | 309 | 362 | 412 |
