Flange Butterfly Valve with Lever
Product Description
Product Details
Lever operated flanged butterfly valve
Size Range: 2-8inch/DN50-DN200
Pressure: 5K/10K/150LB
Valve Design: API 609, MSS SP-67
Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211
Single Eccentric Disc-Shaft
Anti-Blow Out Stem
Bi-Directional
Fire safe Design
Low Friction Body Seat
Zero Leakage
Body Materials: CI/DI/WCB/CF3/ CF3M/CF8/ CF8M
Seat Materials: NBR/EPDM/PTFE/SI
Disc Materials: DI/WCB/CF3/ CF3M/CF8/CF8M/ C954
Stem Materials: 45#/410/ 2Cr13/Cr13/304/316stainless steel

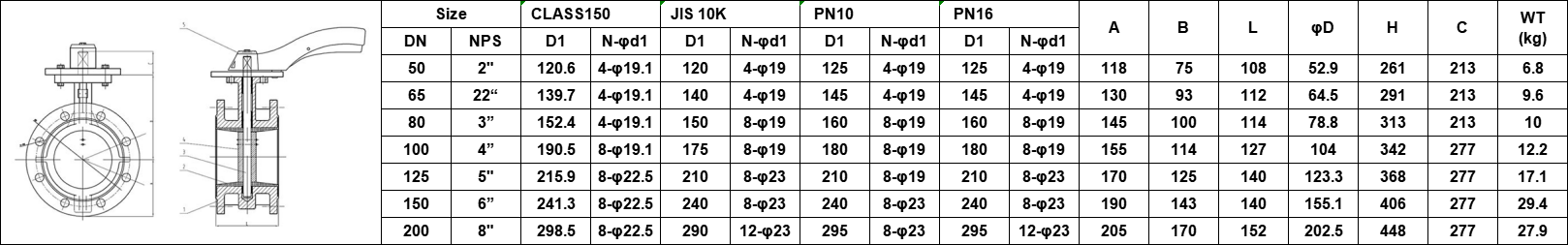

Dimension:
