Rubber expansion joint
Product Description
Product Details
Rubber expansion joint
1. Working Pressure: PN10/PN16.
2. Working Temperature: EPDM.-35℃+120℃. NBR.-12℃+82℃.
3. Fittings between flanges: DIN1092-2 PN10.

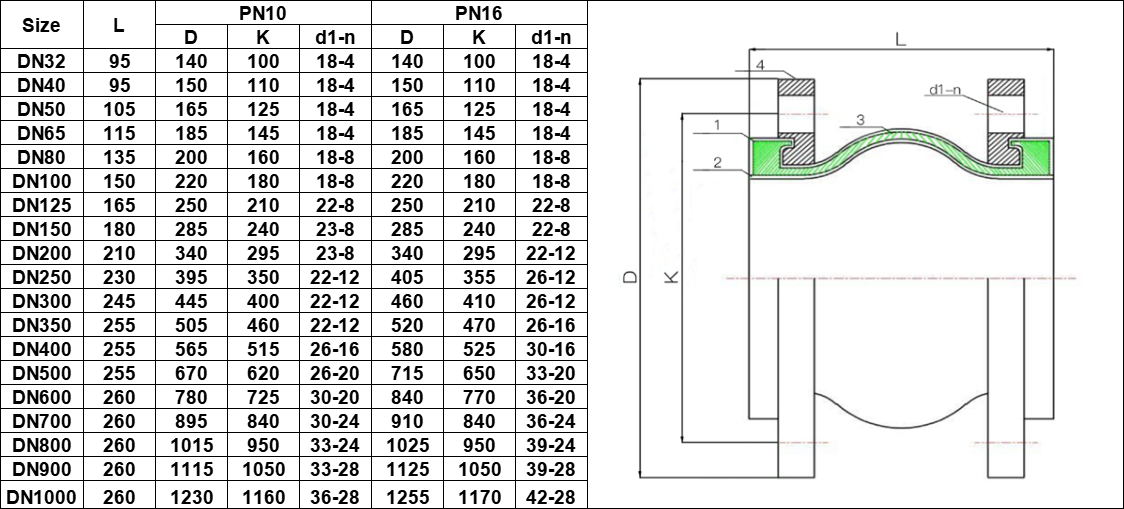

Single Sphere Rubber Expansion Joint
The Major Parts Material
| NO. | Name | Materia |
| 1 | Reinforcement | Nylon Cord |
| 2 | Rubber Body | EPDM/NBR |
| 3 | Stee|Wire Ring | Carbon Stee |
| 4 | Floating Flanges | Zinc Carbon Stee |
Main Connection Dimensions(mm)
Double Sphere Rubber Expansion Joint
The Major Parts Material
| NO. | Name | Materia |
| 1 | Reinforcement | Nylon Cord |
| 2 | Rubber Body | EPDM/NBR |
| 3 | Stee|Wire Ring | Carbon Stee |
| 4 | Floating Flanges | Zinc Carbon Stee |
Main Connection Dimensions(mm)

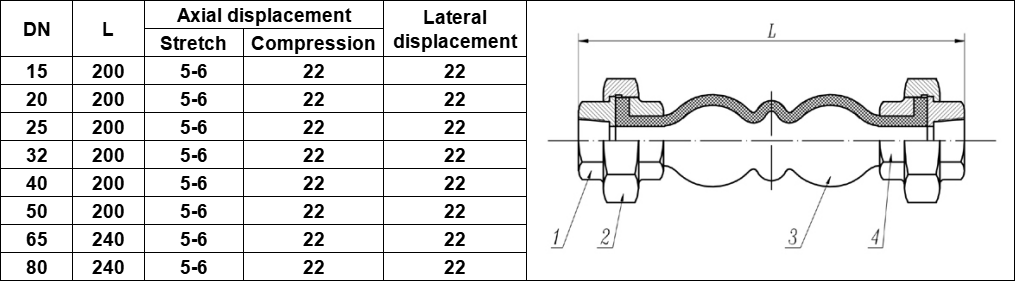

Union type rubber expansion joint
Main Connection Dimensions(mm)
DOWNLOAD Flexible Expansion Joint Catalogue>>
Flexible Expansion Joint.pdf
