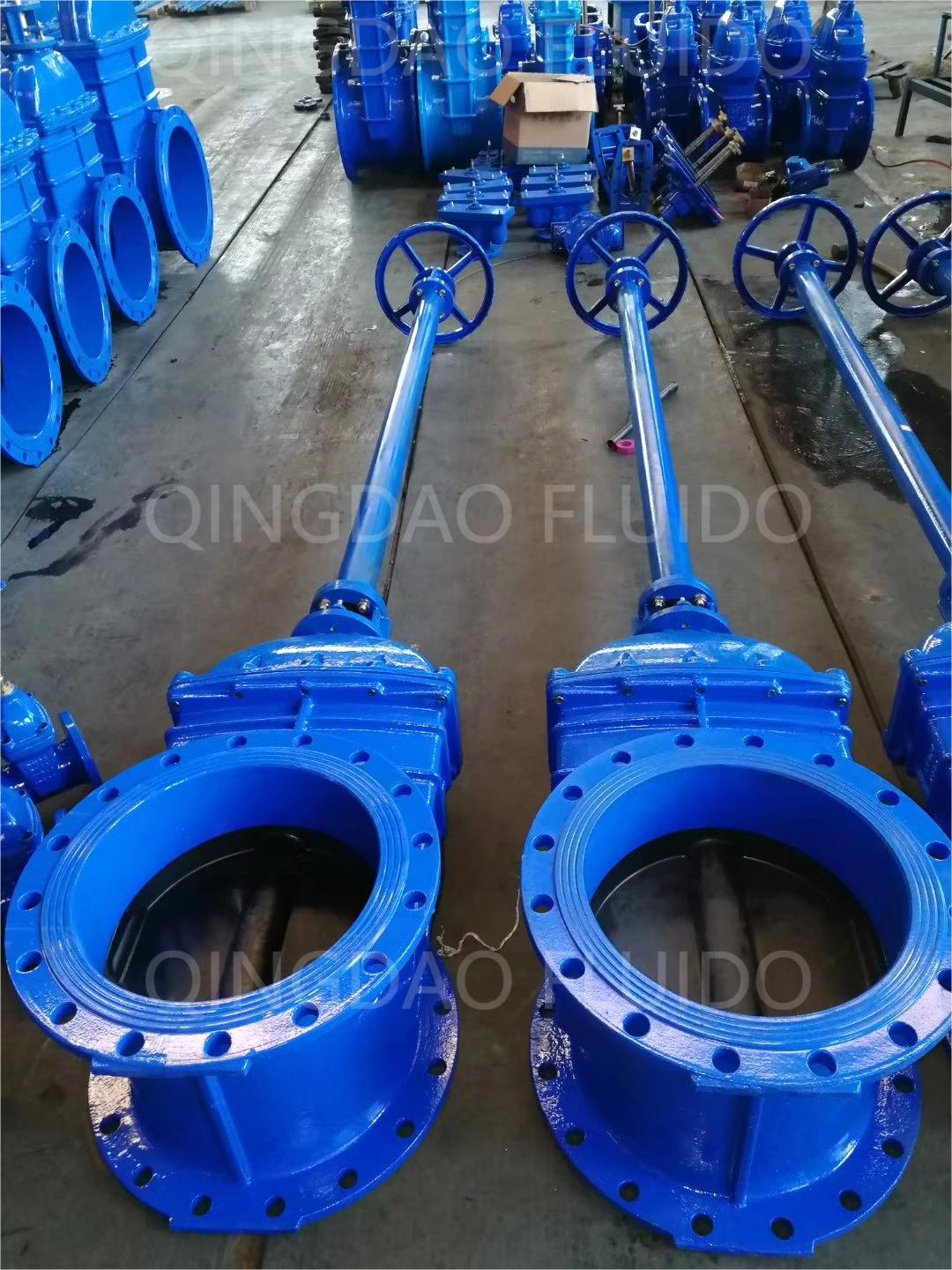

Extended stem gate valve, also known as directly buried gate valve is a gate valve with a special design of the length of the operating stem, mainly used in piping systems that need to be buried deep underground.

Underground Extended Stem Gate Valve usually consists of valve body, valve cover, valve stem, valve seat, valve flap and extension stem. Extension stem is a special design realized by adding length to the valve stem. When an extension stem gate valve is installed deep underground, devices such as operating handles or gears can be raised to a position where they can be easily operated by means of the extension stem. The valve flap realizes the opening and closing of the valve by the lifting and lowering movement of the stem.

Product Advantages

1. The main advantage of the extended stem gate valve is that it adopts one-time underground burial, which reduces the cost of valve replacement in valve wells and road reform and maintenance.

2. Extension stem gate valve can be adapted to be installed in deeply buried pipeline system. The operating handle or gear can be lifted to an easy-to-operate position by the extension rod, which is very convenient for workers to operate.

3. Extended stem gate valve has good sealing performance, to overcome the phenomenon of poor sealing, water leakage and rust of general valves, can effectively save the installation space, can be widely used in water, sewage, petrochemical and other fields.

When you buy extension stem gate valves from Fluido, you will need to provide the following information:

1. provide the overall stem length required.

2. provide the type of operation, most commonly handwheel or gear box operation.

3. Other requirements.

Extended stem gate valve material list:
