Lug Butterfly Valve with handle

Size Range: 2~24" /DN50 - DN600

Pressure: PN10, PN16, Class150

Seat Materials: NBR, EPDM, VITON, PTFE

Disc Materials: Ductile Iron, WCB, CF8,CF8M, Al-bronze C958

Stem Materials: SS304, SS316

End Connection: wafer

Disc type: With-pin



Description

The Lug butterfly valve is one of the commonly used valves that can be used with a handle, handwheel, Worm Gear or others, which usually requires the butterfly valve to meet the ISO 5211 standard.

    Download Leave Message
    product details

    Product Details

    Lug butterfly valve is suitable for applications where the valve needs to be installed between two flanges. The valve is designed with lugs that allow it to be bolted onto the flanges, providing a secure connection. The another type-wafer butterfly valve is suitable for applications where the valve needs to be installed between two pipes. The valve is designed with a wafer that allows it to be sandwiched between the pipes, providing a tight seal.

    In several common connection ways of butterfly valves, the price of wafer type is the cheapest, followed by lug type butterfly valve, flange type butterfly valve is the most expensive, the price is proportional to the overall weight. Contact Fluido to learn more about lug butterfly valve with handle and its applications.
    The dimensions of the Lug butterfly valve with handle are described in the table below.

    Key Features

    Anti-Blow Out Stem
    Bi-Directional
    Fire safe Design
    Low Friction Body Seat

    Standard Test

    Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
    Seat Test: 1.1 times the working pressure with water.
    Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
    Special Test: On request, any other test can be carried out according to special instruction by client.

    Specification

    Lug Butterfly Valve with handle

    No.

    Part Name

    Material

    1

    Body

    SS316/SS304

    2

    Hex Nut

    SS304

    3

    Gasket

    SS304

    4

    Seat

    PTFE

    5

    Ball

    SS316/SS304

    6

    Stem

    SS316/SS304

    7

    Stem Gasket

    PTFE

    8

    Packing

    PTFE

    9

    Gland

    SS304

    10

    Handle

    SS201

    11

    Spring Washer

    SS304

    12

    Nut

    SS304

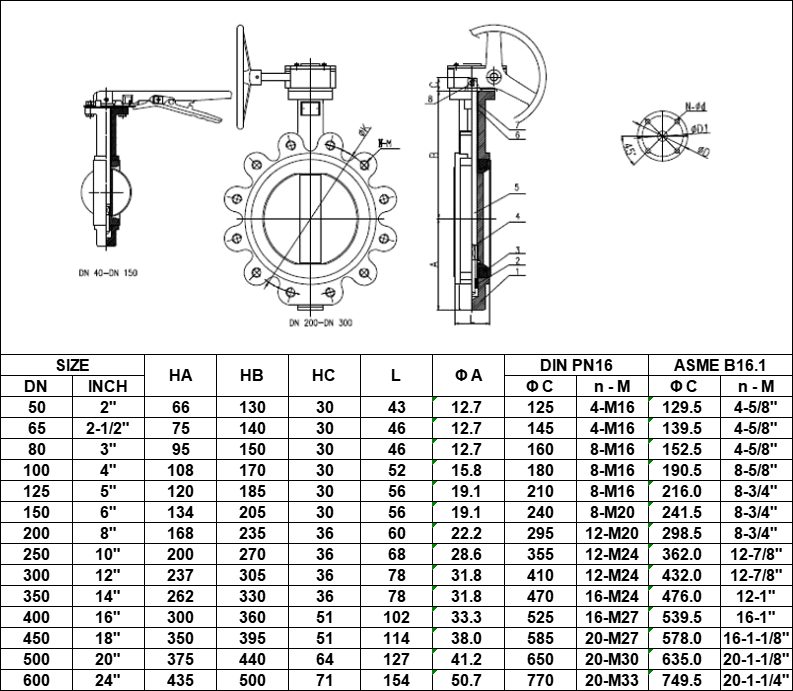

    Dimensions (DIN / ASME)

    SIZE HA HB HC L Φ A DIN PN16 ASME B16.1
    DN INCH Φ C n - M Φ C n - M
    50 2" 66 130 30 43 12.7  125 4-M16 129.5  4-5/8"
    65 2-1/2" 75 140 30 46 12.7  145 4-M16 139.5  4-5/8"
    80 3" 95 150 30 46 12.7  160 8-M16 152.5  4-5/8"
    100 4" 108 170 30 52 15.8  180 8-M16 190.5  8-5/8"
    125 5" 120 185 30 56 19.1  210 8-M16 216.0  8-3/4"
    150 6" 134 205 30 56 19.1  240 8-M20 241.5  8-3/4"
    200 8" 168 235 36 60 22.2  295 12-M20 298.5  8-3/4"
    250 10" 200 270 36 68 28.6  355 12-M24 362.0  12-7/8"
    300 12" 237 305 36 78 31.8  410 12-M24 432.0  12-7/8"
    350 14" 262 330 36 78 31.8  470 16-M24 476.0  12-1"
    400 16" 300 360 51 102 33.3  525 16-M27 539.5  16-1"
    450 18" 350 395 51 114 38.0  585 20-M27 578.0  16-1-1/8"
    500 20" 375 440 64 127 41.2  650 20-M30 635.0  20-1-1/8"
    600 24" 435 500 71 154 50.7  770 20-M33 749.5  20-1-1/4"

    *All dimensions are in mm unless otherwise specified.

    *DIN bolting dimensions are in conformance to EN1092-1.
