Lug Butterfly Valve with Worm Gear

Product Details

The lug butterfly valve, which has lugs that allow it to be bolted onto the flanges and provide a secure connection, is appropriate for applications where the valve must be installed between two flanges. On the other hand, the wafer butterfly valve, which has a wafer that allows it to be sandwiched between the pipes and provide a tight seal, is appropriate for applications where the valve must be installed between two pipes.

Wafer-type butterfly valves typically come with the lowest price tag among the various connection methods. Lug-type valves are next in line, while flange-type valves are the most costly, with price generally correlating to overall weight. For further details on lug butterfly valves with handles and their uses, reach out to Fluido.

Key Features

Standard Test

Valve body test: This test is conducted after the valve assembly is completed and the valve disc is in the half-open position. The test pressure is 1.5 times the working pressure, and water is used. It is also known as the valve body hydrostatic test.

Seat Ring Test: This test is conducted with water at 1.1 times the working pressure.

Functional/Operational Testing: During the final inspection, each valve and its actuator (flow control lever/gear/pneumatic actuator) will undergo a comprehensive operational test (opening/closing). This test is conducted under no-pressure and ambient temperature conditions to ensure proper functioning of the valve/actuator components (including solenoid valves, limit switches, and accessories such as air filter regulators).

Special Testing: Additional testing can be performed according to the customer’s specific instructions.

Specification

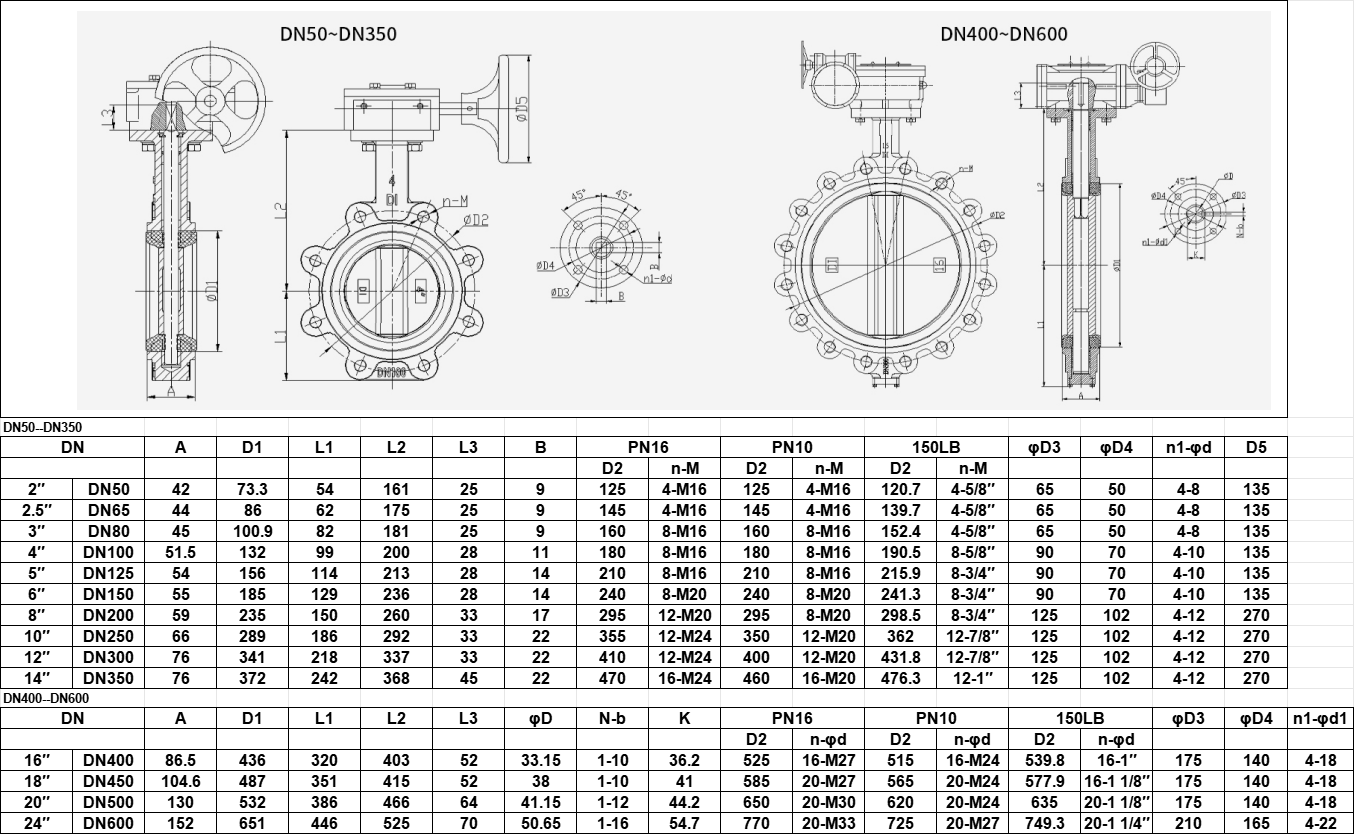

Dimensions

DN50—DN350

DN400--DN600
