PTFE Lined Ball Valve

Size Range: DN15 - DN300

Body Materials: Cast steel, stainless steel, ductile iron

Linging Material: PTFE

Working Pressure: PN10/PN16/Class 150

Connection: Flanged

Body Materials: SS201, SS304, SS316, WCB

Operation: Lever, gear operated, pneumatic actuator, electric actuator

Description

PTFE lined ball valve is a ball valve with a PTFE lining, which has extremely high chemical stability and is suitable for strong corrosive chemical media.

Download Leave Message

Product Details
Parameters
Product Packaging
Related Products
Inquiry

product details

Product Details

PTFE-lined ball valve is a professionally designed to control the opening and closing of various strong corrosive media. It is widely used in petroleum, chemical, dyeing, pesticide, acid and alkali production and other industries. It is the most ideal choice for anti-corrosion valves.

Key Features

1.The valve body is a precision casting valve body, qualified material, good appearance.
2.Using FEP lining, which has extremely high chemical stability.
3.Full-bore construction for leak-free shut-off over the entire pressure range.
4.Ball and stem are cast in one piece, which increases reliability and eliminates the possibilily of vaive stem punching out,ensuring safety
5.Using a special injection molding process, the seal is reliable and zero leakage.

Standard Test

Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close).

This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.

Specification

Item	Name	Material
1	2-Body	CF8+FEP
2	1-Sealing	PTFE
3	3-Body	304+FEP
4	Ball	304/316/316L
5	Stem	304/316/316L
6	Actuator	Lever/Gearbox/Pneumatic/Electric

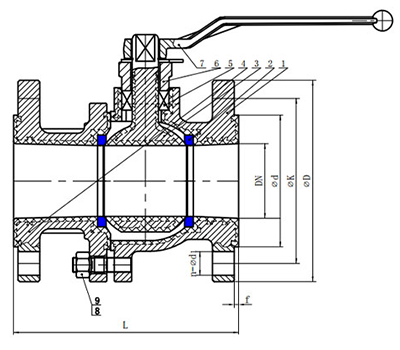

Dimensions

DN	NPS	L	D	K	d	n-d
15	1/2''	130	95	65	45	4-14
20	3/4''	140	105	75	55	4-14
25	1''	150	115	85	65	4-14
32	1-1/4''	165	135	100	78	4-18
40	1-1/2''	180	145	110	85	4-18
50	2''	200	160	125	100	4-18
65	2-1/2''	220	180	145	120	8-18
80	3''	250	195	160	135	8-18
100	4''	280	215	180	155	8-18
125	5''	320	245	210	185	8-18
150	6''	360	280	240	210	8-22
200	8''	400	335	295	265	12-22
250	10''	450	405	355	320	12-26
