Stainless steel spring Singe Disc Wafer Check Valve
Product Description
Product Details
Stainless steel spring Singe Disc Wafer Check Valve
Sizes 1/2" to 8
Working Pressure: W.P. PN25/40
Working Temperature: -20ºC to 180ºC
The Stainless steel spring Single Disc Wafer is made from stainless steel material and it features a single disc design and a wafer-style construction. For preventing media backflow, by using different materials for media such as water, steam, oil, nitric acid, acetic acid, strong oxidizing media and urea.

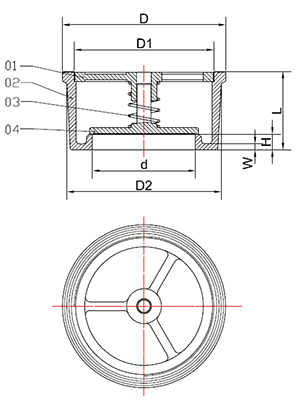

Material list
| ITEM | PART | MATERIAL | QTY | ||||||
| 1 | BODY | A216-WCB | A351-CF8 | A351-CF8M | 1 | ||||
| 2 | SPRING COVER | 304 | 304 | 316 | 1 | ||||
| 3 | SPRING | 304 | 304 | 316 | 1 | ||||
| 4 | DISC | A216-WCB | A351-CF8 | A351-CF8M | 1 | ||||
Dimension list
| SIZE | d | D | D1 | D2 | L | H | W | KGS | ||||
| DN125 | 5" | 118 | 187 | 160 | 177 | 90 | 18 | 6.8 | 5.50 | |||
| DN150 | 6" | 140 | 217 | 187 | 205 | 106 | 23 | 7.2 | 8.30 | |||
| DN200 | 8" | 185 | 274 | 240 | 261 | 140 | 32 | 8 | 16.10 | |||
